Strawbale barn

The strawbale barn – an experiment

One of the hardest things about producing your own food isn’t growing it, it is storing it afterwards. It really wants to break down as fast as possible, and all manner of creatures want to eat it first. Until now we’ve stored food all over the place – hanging up in the living room; in cupboards. In short, not ideal. Another issue that we had was that our 4000 litre rainwater tanks and pump were not terribly pretty and very exposed to cold temperatures. The pump especially has been badly damaged by freezing twice now.

The problem, as they say in permaculture, is the solution, and in this case takes the form of a strawbale barn, which incorporates the water tanks as its back wall. The bulk of water on the south side of the building will act as thermal mass, evening out the temperature within the barn, and the barn will in turn prevent the tanks and pump from freezing.

Our budget for this build was virtually nothing, and so we’ve used recycled or low cost materials throughout. The foundation is made from two courses of rammed earth tyres, topped with gravel. On top of this sits the strawbale wall, which is pinned into the bales with rebar and willow stakes. Window openings are formed from old scaffold boards. We experimented by creating a wall plate from two lengths of 2″ blue water pipe, which is pinned and lashed to the top of the bale wall.

The self supporting reciprocal roof is made from birch poles, which are fixed together where they meet with fencing wire, and to the wallplate with metal strap. On top of these is a deck of sawmill skins. which is in turn covered with a layer of white weed suppressant fabric (a gift from a neighbour). Then a layer of straw, followed by a couple of layers of plastic silage sheet, which are in turn protected by another layer of weed suppressant and old carpet. Soil and turf is then sitting on top of all that.



Update November 2018: The original decision to make a load bearing strawbale structure was a gamble, and one that didn’t really pay off. Firstly the straw wasn’t great – it was in short supply and we took what we could find. Secondly, the experiment with using 2″ water pipe as wall plate (its very rigid and we doubled it up) was one that I can confirm isn’t worth repeating. I underestimated the effect of heavy loads on the pipe, which is very rigid, and how much it would move around.

The end result was that the pipe crushed down into the strawbales quite dramatically, and they compressed quite dramatically, causing the building to go a very interesting shape. This was fine at first, but more recently it became apparent that the whole building was gradually collapsing towards the front, and it was only a matter of time before it went completely. A series of planned earth plastering weekends was cancelled, while I worked out what to do.

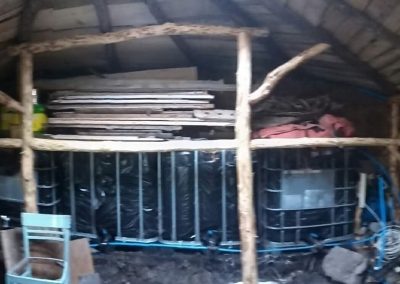

The solution was to put in the timber frame that we should have built in the first place. Not an easy task in a none too stable building without causing it to collapse completely. What I did was to lift a section of the roof using acro props, then prop it with large timber, before building a section of frame under the reciprocal roof. I cut and stripped birch trees, and sat them on large pieces of stone. Galvanised steel 16mm pins connect the uprights through a wallplate to the reciprocal roof rafters above, which are located on top of the pins to prevent movement. The uprights are then braced diagonally to stabilise them. Once I had finished a section it was let down with the steel props, and I moved along to the next section.

A week of swearing ensued, but the end result is that the barn is now completely stable, and although the strawbale walls and windows are sitting at interesting angles, it isn’t going anywhere. The aim now is to move on and get it all plastered, and a level floor installed so that we can use it properly. It’s a lovely space.
